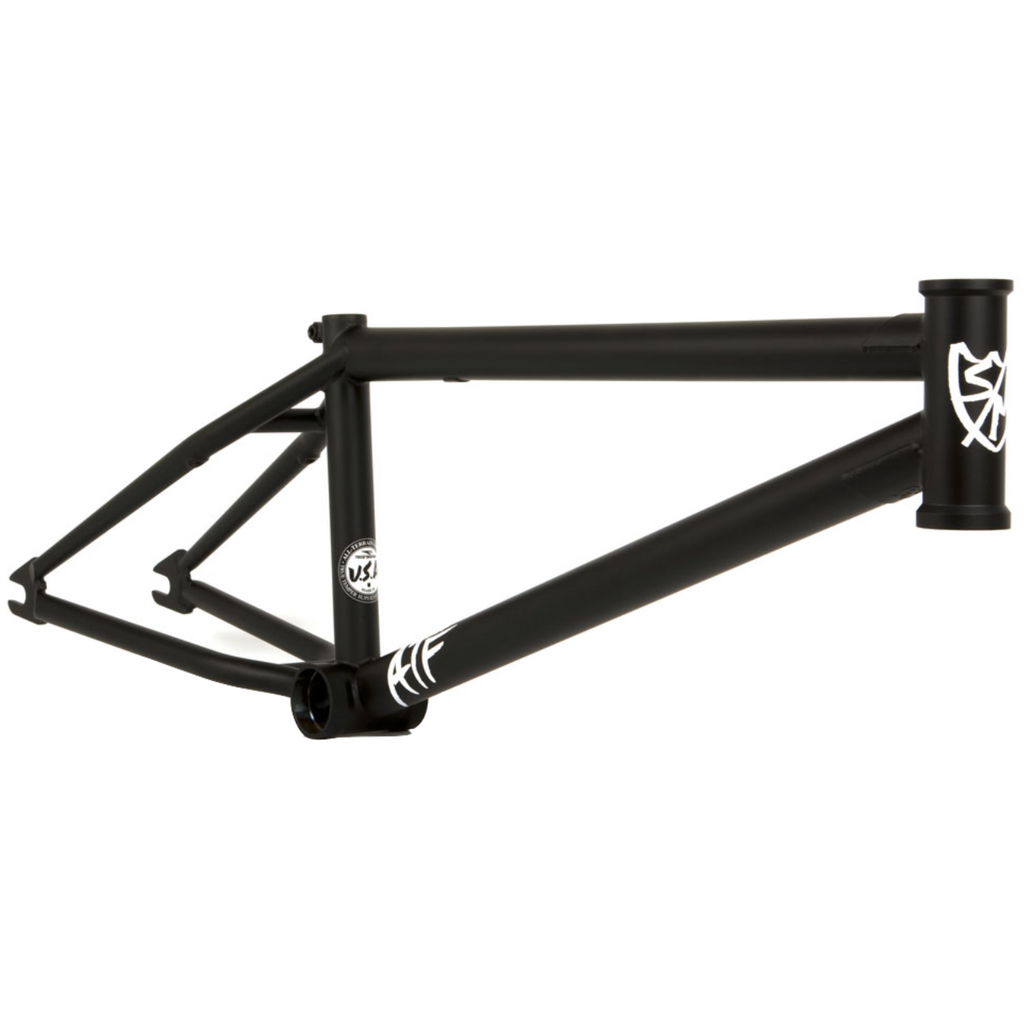

S&M ATF Frame

S&M ATF Frame

$ 349.95

TOP TUBE LENGTHS 20", 20.5", 20.75", 21" This is the base model most of S&M's pro signature frames have started from for awhile now. It’s also the basic custom frame most of the employees here ride. It’s a little stronger and heavier than some of the frames on the market but it’s what people that really ride want. Stylish, classic, and burly all rolled up into one.
REAR END LENGTH 13.4"
HEAD TUBE ANGLE 75°
STANDOVER HEIGHT 8.5"
B.B. HEIGHT 11.7"
SEAT TUBE ANGLE 71°
HEAD TUBE Integrated Campy Style
B.B. STYLE Mid
BRAKE MOUNTS Thread-On (sold separately)
DROPOUTS 14mm
SEAT POST SIZE 1" / 25.4mm
WEIGHT 4.75 lbs. / 2.15 kgs.
